NITRO Maxx 55W 7" LED Light bar
NITRO Maxx 55W 7" LED Light bar
NITRO Maxx 55W 7 LED Light bar
The new Nitro Maxx range of light bars now have boosted performance, with the updated 55W LED light bar delivering an increased beam distance of 40%.
The Nitro light bars have become a hugely popular addition to the Nitro Maxx range. Featuring the Widr optic for width and a Contrl optic for distance, the Nitro Light Bar takes performance to another level.
The Hi/Lo function provides you with an even greater amount of flexibility in a range of driving conditions.
For the 5700K Hi & Lo model light bars:
- Both Hi-Output & Lo-Output functions utilise 5700K LEDs, achieving 170 spread of light with our patented Widr reflector.
For the 4500K Hi & Lo model light bars:
- The Hi-Output function utilises a combination of 4000K and 5700K LEDs (4500K combined average) which gives the perfect open road driving experience with optimal distance and a 170 spread of light.
- The Lo-Output * feature drops the light output to 3 x 4000K LEDs utilising our patented Widr reflector for 170 of spread. This is perfect for foggy or dusty conditions and for reducing the glare on road signs.
- NEW Performance you wont believe unrivalled distance and width outputs
- NEW Widr Optic This unique reflector delivers market leading output, achieving huge distance with excellent spread
- NEW Usable light now 650M
- Designed and Made in Australia for the toughest environments on earth
- Available with either 4500k or 5700k Colour Temperature
- Both side and base mounts are available
- 5 Year Warranty
- A wiring harness and anti-theft nuts are included free of charge
- Includes clear protective lens covers
*Please note the Lo-Output feature doesn't work alongside the vehicles low beam, it just reduces the amount of light coming out of the light bar, while the vehicles high beam is still on.
Both side and base mounts are available as standard options; optional U Mount available (as pictured).
A wiring harness and anti-theft nuts are supplied with each bar. Please specify base or side mounting at the time of ordering.
Need a Wiring Diagram?
Get One Here55W Nitro Light Bar Specification | |
---|---|
Wattage | 50 Watts |
Light Source | 10 x 5w LEDs |
Light Output Raw | 6,160 Lumens |
Light Output Effective | 4,432 Lumens |
Voltage | 9-36V |
Current Draw | 4A |
Operating Temperature | -40 to 80 Deg C |
Waterproof Rating | IP68 |
Connector Type Plugs | 2 Pin std Deutsch |
Housing | 6063 T5 Aluminium |
Outer Lens Construction | Polycarbonate |
Brackets | Sliding Base / Side Mounts |
Colour Temperature | 4500K or 5700K |
Lifespan | 50,000 Hours |

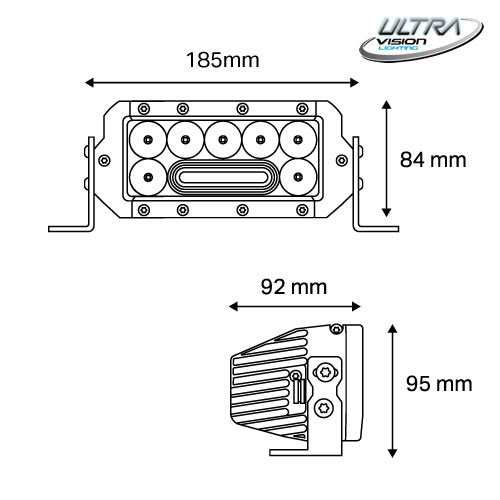

Dimensions | 185 x 92 x 84mm |
Net Weight | 1.1 kg |
Mounting Suitable | Base or Side Mount |
Beams Type | Combo and Widr |
Warranty | 5 Years |
Harness Included | Yes |
Part Number | |
Widr, Black Rim, 4500K | DVM055LEDBW4 |
Widr, Black Rim, 5700K | DVM055LEDBW |
Widr, Chrome Rim, 5700K | DVM055LEDBW-C |
Widr, Black Rim, 4500K, Hi/Lo | DVM055LEDBW4/3 |
Widr, Black Rim, 5700K, Hi/Lo | DVM055LEDBW/3 |
Weight | 1.1 kg |
---|---|
Dimensions | 185 92 84 cm |
Colour Temperature | 4500k, 5700k |
Hi/Lo | Yes, No |
Rim Colour | Black, Chrome |
Mounting Type | Base Mounts, Side Mounts |
NEW Performance you won't believe - unrivalled distance and width outputs NEW Widr Optic - This unique reflector delivers market leading output, achieving huge distance with excellent spread NEW Usable light - now 650M Designed and Made in Australia for the toughest environments on earth Available with either 4500k or 5700k Colour Temperature Both side and base mounts are available 5 Year Warranty A wiring harness and anti-theft nuts are included free of charge Includes clear protective lens coversNEW Performance you won't believe - unrivalled distance and width outputs NEW Widr Optic - This unique reflector delivers market leading output, achieving huge distance with excellent spread NEW Usable light - now 650M Designed and Made in Australia for the toughest environments on earth Available with either 4500k or 5700k Colour Temperature Both side and base mounts are available 5 Year Warranty A wiring harness and anti-theft nuts are included free of charge Includes clear protective lens covers
