Raptor 120 LED 26.5 Light Bar
The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough.
The open-optic reflector gives a combination beam with very good distance and peripheral width of 100from one lamp type.
To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.
All RAPTOR lamps come complete stainless steel pivot mounting brackets and stainless steel fixings. As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.
- Made in Australia Designed and built for some of the toughest environments on earth.
- Available with either 4000k or 5700k Colour Temperature
- 3 Year Warranty
- Suits DV12H Harness Sold Separately
Need a Wiring Diagram?
Get One Here
| 120W Raptor Light Bar Specifications | |
|---|---|
| Wattage | 120 Watts |
| Light Source | 24 x 5w LED's |
| Light Output Raw | 14,400 Lumens |
| Light Output Effective | 11,500 Lumens |
| Voltage | 9-36V |
| Current Draw | 8.9A @ 13.5V |
| Operating Temperature | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plug | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Outer Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |

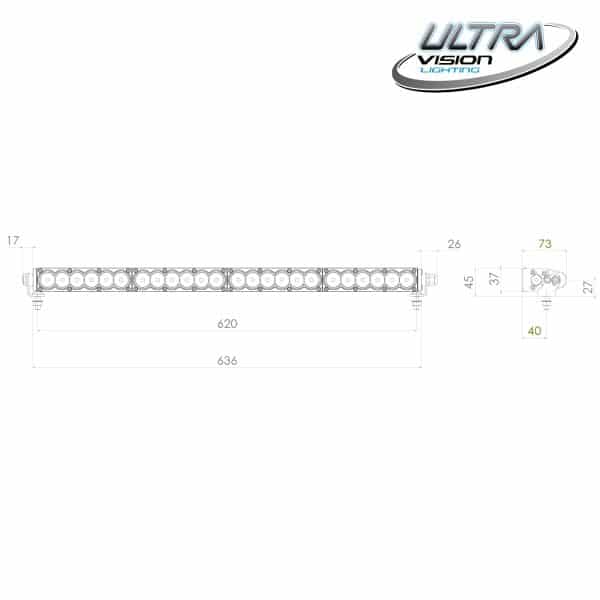

| Dimensions | 679 x 45 x 73mm |
| Net Weight | 2.3kg |
| Mounting Suitable | Side Mounts |
| Beams Available | Combo or Spread |
| Warranty | 3 Years |
| Harness | Harness not included, purchased separately. Harness to suit: DV12H |
| Part Number | |
| Combo, 5700K | RAP120LBv2 |
| Spread, 5700K | RAP120LBSv2 |
| Combo, 4000K | RAP120LB4v2 |
| Spread, 4000K | RAP120LB4Sv2 |
Made in Australia - Designed and built for some of the toughest environments on earth. Available with either 4000k or 5700k Colour Temperature 3 Year Warranty Suits DV12H Harness Sold SeparatelyMade in Australia -Designed and built for some of the toughest environments on earth. Available with either 4000k or 5700k Colour Temperature 3 Year Warranty Suits DV12H Harness Sold Separately
