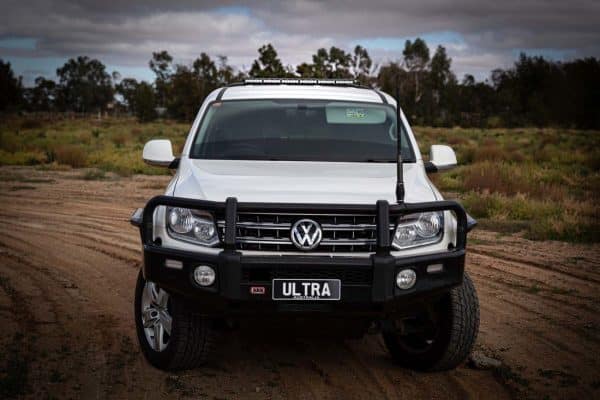

Raptor 180 LED 39" Light Bar

Raptor 180 LED 39" Light Bar

Regular price $709.00 AUD
Regular price Sale price $709.00 AUD
Sale Sold out
Shipping calculated at checkout.
Colour
Beam Type

Raptor 180 LED 39 Light Bar

The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough.

The open-optic reflector gives a combination beam with very good distance and peripheral width of over 100 from one lamp type.

To ensure maximum driver comfort the light bars are available with either 4000k or 5700k Colour Temperature.

The RAPTOR 180 light bar comes complete with stainless steel pivot mounting brackets, stainless steel fixings and a 3-metre lead for mounting onto roof rack systems. As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.

  • Made in Australia Designed and built for some of the toughest environments on earth.
  • Available with either 4000k or 5700k Colour Temperature
  • 3 Year Warranty Suits DV12HD Harness Sold Separately Optional Extras.

Need a Wiring Diagram?
Get One Here

180W Raptor Light Bar Specifications
Wattage 180 Watts
Light Source 36 x 5w LED's
Light Output Raw 21,600 Lumens
Light Output Effective 17,300 Lumens
Voltage 9-36V
Current Draw 13A @ 13.5V
Operating Temperature -40 to 80 Deg C
Waterproof Rating IP67
Connector Type Plug 2 Pin Heavy Duty Deutsch
Housing Aluminium
Lens Construction Polycarbonate
Bracket Stainless Steel
Colour Temperature 4000K or 5700K
Lifespan 50,000 Hours
Dimensions 991 x 45 x 73mm
Net Weight 3kg
Mounting Suitable Side Mounts
Beams Type Combo or Spread
Warranty 3 Years
Harness Harness not included, purchased separately. Harness to suit: DV12HD
Part Number
Combo, 5700K RAP180LBRRv2
Spread, 5700K RAP180LBRRSv2
Combo, 4000K RAP180LBRR4v2
Spread, 4000K RAP180LB4RRSv2
Made in Australia - Designed and built for some of the toughest environments on earth. Available with either 4000k or 5700k Colour Temperature 3 Year Warranty Suits DV12HD Harness Sold SeparatelyMade in Australia -Designed and built for some of the toughest environments on earth. Available with either 4000k or 5700k Colour Temperature 3 Year Warranty Suits DV12HD Harness Sold Separately

Dispatched within 1-3 Business Days (Excluding Custom-Made)
